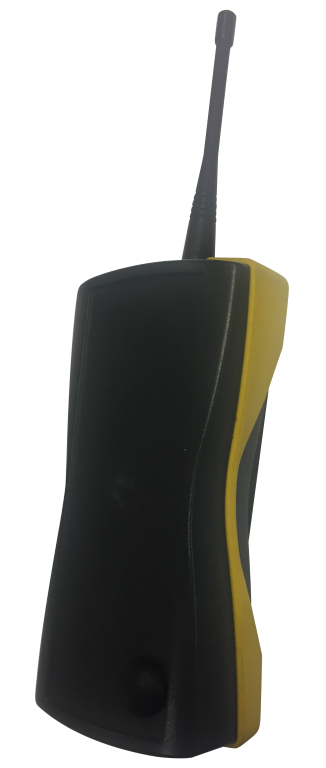

rollXmanager Fieldx WM Bus
Designed for Tough Environments
- EN 13757 standards Support OMS Protocol
- Long-lasting battery life
- User friendly application and easy bluetooth connectivity
- Shock proof

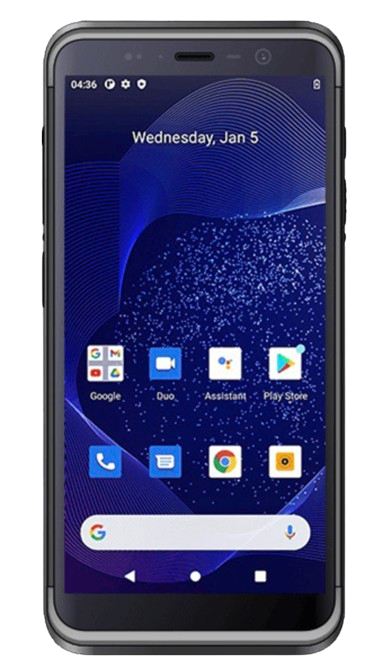

C80 Rugged Mobile Computer
Designed for Tough Environments
- Rugged design for harsh conditions
- Long-lasting battery life
- Seamless integration with RollxManager
- High-performance for field operations

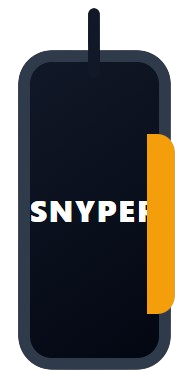

SNYPER Network Analysers
Survey cellular network performance
- Handheld, battery-operated network survey analyser
- Supports 2G / 3G / 4G / 5G and LTE Cat‑M / NB‑IoT
- Shows available networks, signal strengths and cells
- CSV / HTML survey reports and CloudSURVEY mapping
1 / 3
Technical Specifications
rollXmanager Fieldx WM Bus
Operating Conditions
- Non-Charging Mode: -0°C to +40°C, 0% to 95% relative humidity (non-condensing)
- Charging Mode: -0°C to +40°C, 0% to 95% relative humidity (non-condensing)
Protection Rating
- Ingress Protection (IP): IP65 (dust-tight and protected against water jets)
Maxium Radio Output Power
- 868 MHz: 25 mW
- 434 MHz: 10 mW
C80 Rugged Mobile Computer
Physical Parameters
- Size: 165.6*80.9*21.7mm
- Weight: 278g (4600mAh) / 303g (6200mAh)
- Display: 5.72-inch IPS
- Battery: 4600mAh/6200mAh
Performance
- CPU: Octa-core 2.0GHz
- OS: Android 11/13
- RAM: 4GB/6GB
- Storage: 64GB/128GB
Environmental
- IP Rating: IP67
- Drop: 1.5m
- Temperature: -20°C to 55°C
SNYPER Network Analysers
Network Survey Capability
- Survey: SIM-free cellular network scanning
- Technologies: 2G, 3G, 4G/LTE, 5G/NR, LTE Cat‑M, NB‑IoT depending on model
- Output: Best network, signal strength, cells available and ranking
Field Operation Features
- LiveSCAN: Real-time signal monitoring for optimum antenna placement
- Reports: CSV and HTML graphical results
- Storage: From single survey up to 10,000 survey capacity depending on model
Utility Deployment Value
- Use: NB‑IoT / LTE / 5G coverage validation before smart meter rollout
- Benefit: Reduce downtime, improve signal reliability and select backup networks
- Application: Site survey, installation validation and maintenance support
Key Benefits for Smart Meter / Utility Projects
Planning
Validate operator network availability before deployment and identify the best primary and secondary backup network options.
Installation
Use LiveSCAN and directional antenna support to determine optimum antenna or device placement at customer sites.
Operations
Evaluate existing installations, identify intermittent cellular service and reduce costly engineer call-outs.
Prepared as a product model layout based on the provided SNYPER Network Analyser information.
